Mouse Vinculin (VCL) ELISA Kit

Mouse Vinculin (VCL) ELISA Kit

Views(115) Publications(0) Catalog no(KTE70026)
Datasheet Print Share Email Share
  • Specification
  • FAQ
  • Publications(0)
  • Comments(0)


Product name Mouse Vinculin (VCL) ELISA Kit
Reactivity Mouse
Applications ELISA
Applications notes This Mouse Vinculin (VCL) ELISA Kit employs a two-site sandwich ELISA to quantitate VCL in samples. An antibody specific for VCL has been pre-coated onto a microplate. Standards and samples are pipetted into the wells and anyVCL present is bound by the immobilized antibody. After removing any unbound substances, a biotin-conjugated antibody specific for VCL is added to the wells. After washing, Streptavidin conjugated Horseradish Peroxidase (HRP) is added to the wells. Following a wash to remove any unbound avidin-enzyme reagent, a substrate solution is added to the wells and color develops in proportion to the amount of VCL bound in the initial step. The color development is stopped and the intensity of the color is measured.
Detection method Colorimetric
SampleType Cell culture supernatants, Other biological fluids, Plasma, Serum
Assay type Sandwich ELISA (quantitative)
Assay duration Multiple steps standard sandwich ELISA assay with a working time of 3-5 hours. It depends on the experience of the operation person.
Alternative VCL; RP11-178G16.3; CMD1W; MVCL; metavinculin

Product Properties

Kit components • Mouse Vinculin microplate
• Mouse Vinculin standard
• Mouse Vinculin detect antibody
• Streptavidin-HRP
• Standard diluent
• Assay buffer
• HRP substrate
• Stop solution
• Wash buffer
• Plate covers
Features & Benefits Mouse Vinculin (VCL) ELISA Kit has high sensitivity and excellent specificity for detection of Mouse VCL. No significant cross-reactivity or interference between Mouse VCL and analogues was observed.
Calibration range Please inquire
Limit of detection Please inquire
Usage notes • Do not mix components from different kit lots or use reagents beyond the kit expiration date.
• Allow all reagents to warm to room temperature for at least 30 minutes before opening.
• Pre-rinse the pipet tip with reagent, use fresh pipet tips for each sample, standard and reagent to avoid contamination.
• Unused wells must be kept desiccated at 4 °C in the sealed bag provided.
• Mix Thoroughly is very important for the result. It is recommended using low frequency oscillator or slight hand shaking every 10 minutes.
• It is recommended that all samples and standards be assayed in duplicate or triplicate.
Storage instructions The unopened kit should be stored at 2 - 8°C. After opening, please store refer to protocols.
Shipping Gel pack with blue ice.
Precautions The product listed herein is for research use only and is not intended for use in human or clinical diagnosis. Suggested applications of our products are not recommendations to use our products in violation of any patent or as a license. We cannot be responsible for patent infringements or other violations that may occur with the use of this product.

Additional Information

Background In mammalian cells, vinculin is a membrane-cytoskeletal protein in focal adhesion plaques that is involved in linkage of integrin adhesion molecules to the actin cytoskeleton. Its sequence is 20-30% homologous to α-catenin, which serves a similar function. Vinculin is a 117 kDa cytoskeletal protein with 1066 amino acids. The protein contains an acidic N-terminal domain and a basic C-terminal domain separated by a proline-rich middle segment. Vinculin consists of a globular head domain that contains binding sites for talin and α-actinin as well as a tyrosine phosphorylation site, while the tail region contains binding sites for F-actin, paxillin and lipids.
Gene ID 22330
Alternative VCL; RP11-178G16.3; CMD1W; MVCL; metavinculin
Accession Q64727

Image & description

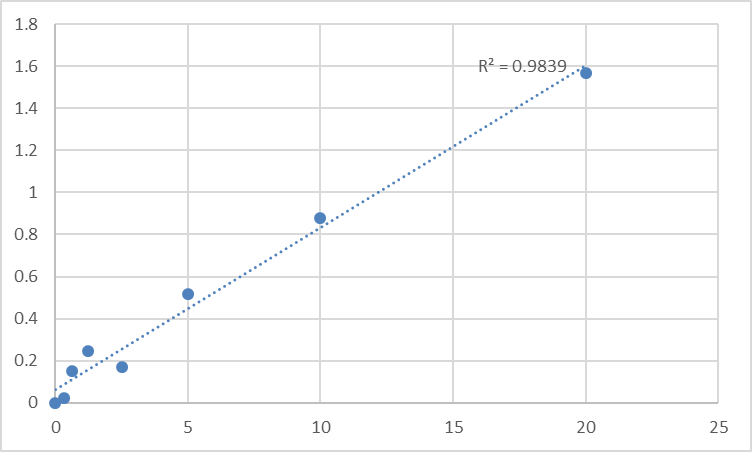

Fig.1. Mouse Vinculin (VCL) Standard Curve.

Fig.1. Mouse Vinculin (VCL) Standard Curve.

Fig.2. Abbkine ELISA kit is series of sandwich ELISA to quantitate specific protein in samples.

Fig.2. Abbkine ELISA kit is series of sandwich ELISA to quantitate specific protein in samples.
